RTL8735BDM-A20-N04 Ethernet

FreeRTOS SDK
1

Hi,

RTL8735BDM-A20-N04 Module have Ethernet option?

Regards,

Amit Jain

2

Hi @Amit_Jain

If you are designing your own PCB with an Ethernet port, you may refer to the following link for using Ethernet MII:

Alternatively, if you are not using an Ethernet port on your PCB, we also support Ethernet over USB OTG. Please refer to the example below:

3

Hi @Amit_Jain

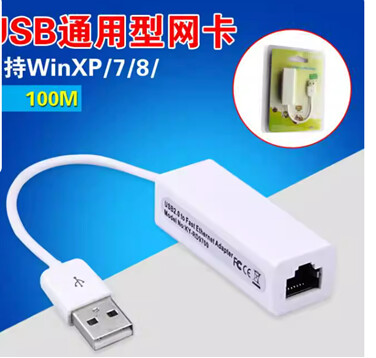

With regard to USB OTG to Ethernet, I would like to share some USB Ethernet adapter that you can use for your testing.

  1. https://item.taobao.com/item.htm?id=611652319624&mi_id=0000-JxUrnVmMwdy4GdLu-p30GK2EzeoDIucgQMC7K0lcSM&spm=tbpc.boughtlist.suborder_itemtitle.1.57452e8dBmc6Jx%2011%3A39%20EdM%2F

    image326×306 62.4 KB

  2. https://detail.tmall.com/item.htm?id=912099297970&mi_id=00002oSYCQHyDmSviGZ3IUG4dky2oyliRdBi2cQ_NvGuCAk&spm=tbpc.boughtlist.suborder_itemtitle.1.57452e8dBmc6Jx%2011%3A39%20EdM%2F

    image327×326 33.5 KB

  3. https://item.taobao.com/item.htm?id=575687775362&mi_id=00003jTHfFtWVQigtXV0zjGokyP8yGirT9O39UNLxFYbTEY&spm=tbpc.boughtlist.suborder_itemtitle.1.57452e8dBmc6Jx

    image376×358 40.8 KB

4

Hi @Pammy

We have took pins out on our board for ethernet i.e, attached in Pic below and using the link you provided i.e,

we need to do anything else to make it work?

image220×177 4.98 KB
